1. Introduction to UV Aging Test:
Ultraviolet light causes photodegradation of durable materials exposed outdoors. The UV aging test simulates critical short-wave UV light, accurately reproducing the physical damage caused by sunlight. The UV aging test can replicate damage that would take months or years outdoors, including fading, chalking, discoloration, loss of gloss, cracking, embrittlement, hazing, strength reduction, and oxidation.
The UV aging test uses fluorescent UV lamps as the light source, simulating UV radiation and condensation from natural sunlight to conduct accelerated weathering tests on materials, thereby obtaining results on their weather resistance. It can simulate environmental conditions found in nature such as UV radiation, rain, high temperature, high humidity, condensation, and darkness. By recreating these conditions and combining them into a single cycle, the test automatically executes for a specified number of cycles.
2. UV Aging Test Standards:
|
Test Item |
Test Standard |
|
|
Conventional Conditions |
ASTM G154-06 Cycle 1 (Non-metallic materials) |
No Spray Condition |
|
ASTM D4329-05 Cycle A (Plastics) |
||
|
ASTM D4587-05 Cycle 4 (Coatings) |
||
|
AATCC 186-2007 Option 1 (Textiles) |
||
|
ISO 4892-3 Method A Cycle 1 (Plastics) |
||
|
ASTM D1148-07a (Rubber) |
||
|
Non-conventional Conditions |
ASTM G154-06 Cycle 2~6,8 (Non-metallic materials) |
No Spray Condition |
|
ASTM D4329-05 Cycle B,C (Plastics) |
||
|
ASTM D4587-05 Cycle 1~3 (Coatings) |
||
|
ASTM D5208-01 (Plastics) |
||
|
AATCC 186-2007 Option 3 (Textiles) |
||
|
ISO 4892-3:2006 (Plastics) Except conditions other than cycle 1 |
||
|
SAE J2020-2003 (Automotive Exterior Parts) |
||
|
EN ISO 11507:2001 Method A (Coatings) |
||
|
BS 2782 Part 5:1995 (Plastics) |
||
|
GB/T 16422.3-2014 (Plastics) |
||
|
ASTM D4674 REV A-2002 Method Ⅳ |
||
|
ASTM G154-06 Cycle 7 (Non-metallic materials) |
Spray Condition |
|
|
ISO 11507:2007 (Paints and varnishes) |
||
3. UV Aging Test Application Fields:
Non-metallic materials, organic materials (e.g., coatings, paints, dyes, fabrics, printing and packaging, adhesives, automotive and motorcycle parts, cosmetics, metals, electronics, electroplating, rubber, plastics, and their products).
4. Equipment Parameters:

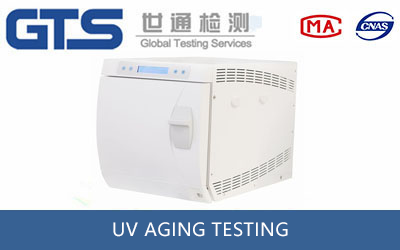

Model: QUV/se
Light Cycle: 45℃ - 80℃
Condensation Cycle: 40℃ - 60℃
Sample Capacity: 48 samples (75 x 150 mm)
5. Stone Testing Advantages:
Stone Testing Laboratory's QUV aging tester can perform various standard conventional and non-conventional UV aging tests. New and existing clients are welcome to inquire.
