Carbon Arc Lamp Testing

1. Introduction to Carbon Arc Lamp Aging Test:

Carbon arc lamp light exposure testing simulates the natural aging effects that materials experience when exposed to sunlight or sunlight filtered through window glass in real-world use environments.

2. Carbon Arc Lamp Aging Test Standards:

Carbon Arc Lamp Aging Test

ASTM D1499-2005；

GB/T 16422.4-2014 (Plastics)；

JIS D0205-1987 (Automotive Parts)；

ASTM G152-06, Cycle1,2,4,5 (Non-metallic Materials)；

GB/T15255-1994；

ASTM D822-01(2006) (Coatings)；

ASTM D3361-01(2006) (No Filter, Coatings)

3. Application Fields of Carbon Arc Lamp Aging Test:

Coatings/Platings, Automotive Parts, Construction Industry, Dye/Chemical Industry, Rubber Industry, etc.

4. Equipment Parameters:

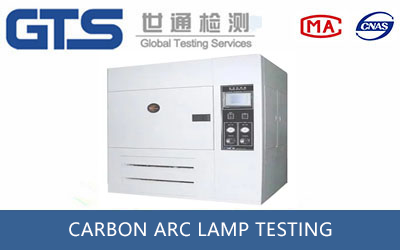

Equipment Name: Carbon Arc Lamp Test Instrument

Light Source: Sunshine Carbon Arc Lamp (4 pairs of long-life carbon arc rods)

Continuous Light Exposure Time: 78 h

Voltage/Current: 50±2V, 60±2A

Temperature and Humidity Range: Light exposure test 63±3℃ Black Panel Temperature (BPT), 30-70±5% Relative Humidity

5. Advantages of Stone Testing:

Stone Testing Laboratory has a professional analysis and testing team capable of customizing testing solutions for products. Leveraging the center's advanced testing equipment and years of testing experience, we conduct efficient and accurate testing in accordance with relevant national and international standards. Ultimately, we synthesize test data to produce comprehensive and authoritative testing analysis reports.
